BW-A700 J1939 CAN Bus Fiber Light Engine for Military Vehicles
SKU: BW-A700-xxx (color choice)
Blue Wolf’s BW-A700 J1939 CAN Bus fiber light engine provides military vehicle lighting with RGB or white primary light and a separate NVIS White or NVG Green A secondary blackout output for use with military night vision goggles.
For teams evaluating J1939 CAN Bus military products, the BW-A700 delivers light through BW-A720-XX side-emitting fiber bundles ordered to length, illuminating vehicle interior spaces. J1939 controls support individual or global light levels and configurable lost-communication settings.

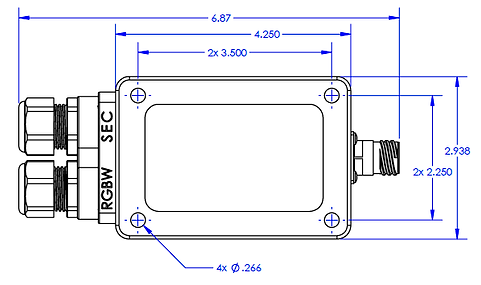

The compact IP68-rated enclosure measures 6.87" x 2.938" x 1.56". Request the BW-A700 detailed print drawing for integration information.
BW-A700 J1939 CAN Bus Fiber Light Engine.
With J1939 CAN Bus built in, the light is capable of:
-
Address Arbitration capable
-
Default to 250 kbps.
-
Default light settings for both Primary & Secondary modes upon power up
-
Built in CAN Bus termination resistor register
-
Easy light level setting for each mode, individually or globally
-
Configurable lost communication settings
-
Configurable PGN reporting on status of the light
Light Options: White, NVIS White, NVG Green, Red, Blue, Green or any RGB custom light combination
Connection to the BW-A700 J1939 CAN Bus Fiber Light Engine is done through a standard D38999 connector style.
J1939 CAN Bus Product Images / Color Options
Product Quick Data Specs
-
J1939 Can Bus Communication
-
IP68 Rated
-
Operating Voltage: 14-28 Vdc Typ.
-
Operating current: 700ma
-
Operating Temp -40 to 122 Degrees F.
-
Dimmable from 0 to 100%
-
NVIS Compliant MIL-STD 3009
-
Material: Black 6061-T6 Aluminum
-
Reverse Polarity Protection
-
Overvoltage and Transient Protection
-
Designed to meet MIL-1275
-
DOD-160 Section 8 compliant
